1.5m Width SPC Flooring Underlayment 400m/Roll Closed Cell Foam Underlay

1.5m Width SPC Flooring Underlayment 400m/Roll Closed Cell Foam Underlay

  • High Light

    1.5m SPC Flooring Underlayment

    ,

    SPC Flooring Underlayment 400m/Roll

    ,

    Closed Cell Foam Underlay

  • Material
    Vinyl Floor Underlay
  • Color
    Black
  • Thickness
    1.5MM
  • Density
    66KGS/m³
  • Package
    Shrink-wrapped With PE Bag
  • Application
    Floating Floor.heating Subfloor
  • Brand Name
    new top star
  • Minimum Order Quantity
    1000m²
  • Packaging Details
    shink wrap each rolls packed with plastic bag

1.5m Width SPC Flooring Underlayment 400m/Roll Closed Cell Foam Underlay

1.5mm Thick IXPE Foam Underlayment For Attached Backing Of Vinyl Flooring



PRODUCT DESCRIPTION

The 1.5 mm thick polyethylene IXPE flooring acoustic substrate is suitable for any vinyl flooring.Perfect thermal efficiency, stable quality to ensure the use of effect.Design, design and manufacture to environmental specifications.

IXPE pads are made of polyethylene foam.Polyethylene itself is non-toxic and odorless. Does not contain any toxic additives, using high temperature blowing agent.IXPE has low thermal conductivity and good thermal insulation performance.IXPE has high mechanical strength and durability.



1.5m Width SPC Flooring Underlayment 400m/Roll Closed Cell Foam Underlay 0

IXPE Foam Underlay Material For Vinyl flooring
Foam Type Irradiation Cross Linked Polyethylene Foam
Available Density 33-100kgs/m3
Thickness 1-3mm or customized
Coating process No Film.PE film, silver film, aluminum foil or others
Color Black, blue, green, orange or others
Width 1-1.5m,Max 1.8meter
Length 300-400m or customized
Feature High density; smooth; comfortable; tough; low water absorption
Application:

Being used in PVC, WPC flooring, construction, roof, wall insulation;

Heat insulation material for automotive, sports &leisure industry so on.

Function:

· Closed cell structure

· Long lasting insulation material

· Excellent thermal insulation

· Acoustic noise reduction

· Constant energy saving

· Flame retardant protection



1.5m Width SPC Flooring Underlayment 400m/Roll Closed Cell Foam Underlay 1

Specifications

  • 1.5mm black IXPE(physical cross-linked polyethylene) styrofoam with silver film backing.

    0.086 m² K/W insulation

    22 dB sound insulation

Description


  • 1.5mm foam thickness corrects minor sub-floor imperfections.
  • Especially suited for underfloor heating, laminate and wood flooring.
  • Odourless , moisture and water proof, sound and thermal insulating.
  • Suitable for concrete and all timber sub-floors.
  • 1.5m Width SPC Flooring Underlayment 400m/Roll Closed Cell Foam Underlay 2

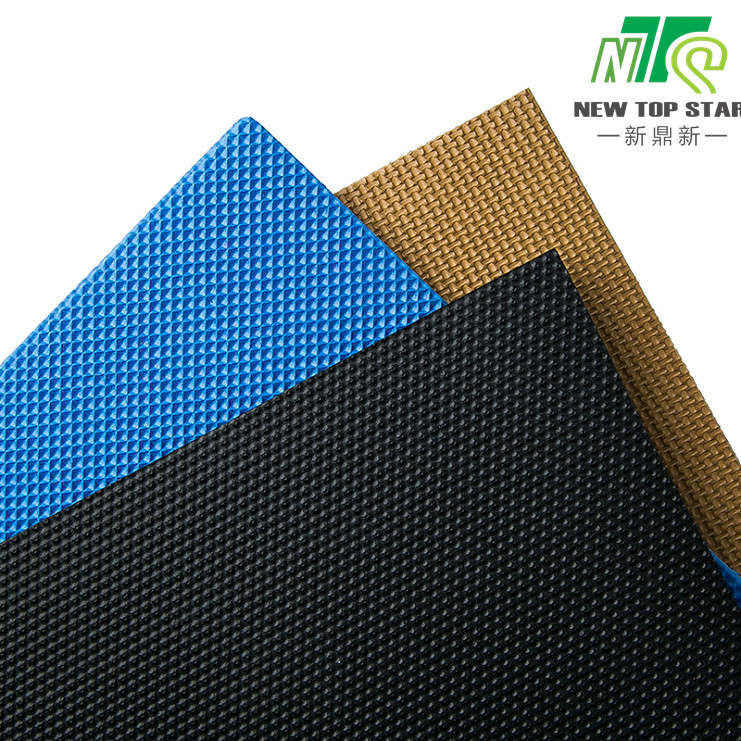

Different Embossed Patterns For Choose

Embossing refers to the formation of a raised pattern between foam embossing rollers at high temperature and pressure.In order to meet customer requirements, hot embossed closed hole crosslinked polyethylene foam is used.Especially suitable for sports and leisure industry, such as yoga mattresses, cross fitness mattresses, etc.

Ways to Heat Embossing Closed Cell Crosslinked PE Foam



Embossing rollers are engraved with patterns that are transferred to foam under heat and pressure.The imprint process increases the density of foam cells on the surface.This changes the acoustic signature to help with better low frequency absorption and provides a distinctive aesthetic look.

1.5m Width SPC Flooring Underlayment 400m/Roll Closed Cell Foam Underlay 3



Advantages

1. Designed for antibacterial flooring to create a healthy environment

2. Inhibit the growth of bacteria, with super sterilization effect

3. Very long term antibacterial effect

4. High quality closed cell IXPE foam, with excellent sound insulation, moisture-proof function



Services Of Our Factory



Top Star Factory offers the best solution for polyethylene foam production, We supply PE foam in rolls, length of each roll can be customized to meet customer's requirement. The PE foam product can also be provided on the sheet as a request.Here support foam die- Cutting, Lamination Adhesive, Sheeting, Perforating & Skiving.All the service are focused on quality of products and satisfied our customer.



A variety of THICKNESS and WIDTH can be Customized:







DENSITY: :26-300kg/m3 (kilogramme per metric cube).







THICKNESS, single layer sheeting of 0.5-15mm, and also laminating multiple layers of sheets up to 80mm.







WIDTH, produced in roll form of 1.0M - 1.8M, depending on foam density and thickness.







FORM of the finished product are converted into roll, sheet, laminated, die-cut and 3D glued, according to client's request.
