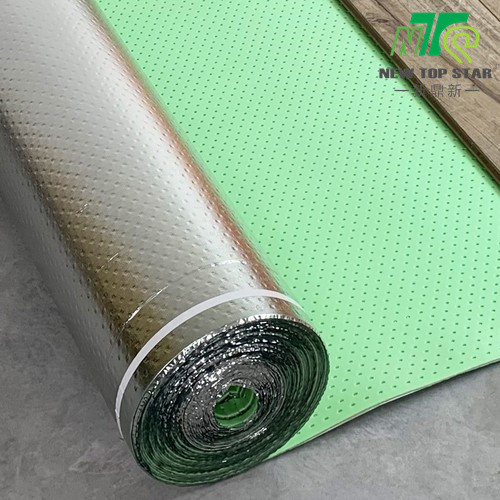

Odorless Cross Linked Polyethylene Foam Roll 2mm Laminate Underlay IXPE Foam

Odorless Cross Linked Polyethylene Foam Roll 2mm Laminate Underlay IXPE Foam

  • High Light

    Cross Linked Polyethylene Foam Roll 2mm

    ,

    Odorless Cross Linked Polyethylene Foam Roll

    ,

    2mm Laminate Underlay

  • Material
    Cross Link Foam With A Silver Film Vapor Barrier.
  • Roll Size
    100sqft/200sqft Per Roll
  • Thickness
    2mm
  • Application
    Subfloor Heating System
  • Color
    Green
  • Coverage
    200sq.ft/roll
  • Place of Origin
    china
  • Brand Name
    new top star
  • Certification
    Rohs.REACH.ISO
  • Model Number
    IXPE3020-L-H
  • Minimum Order Quantity
    1000SQ.M.
  • Price
    negotiate
  • Packaging Details
    shink wrap each rolls packed with plastic bag
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    2000000sq.m. per month

Odorless Cross Linked Polyethylene Foam Roll 2mm Laminate Underlay IXPE Foam

IXPE Foam Soundproof Vapor Barrier Underlayment For Laminate Flooring



IXPE pads are made of polyethylene foam.Polyethylene itself is non-toxic and odorless.Does not contain any toxic additives, using high temperature blowing agent.IXPE has low thermal conductivity and good thermal insulation performance.IXPE has high mechanical strength and durability.IXPE substrate is designed for maximum sound reduction.

Odorless Cross Linked Polyethylene Foam Roll 2mm Laminate Underlay IXPE Foam 0



Specification

IXPE Polyethylene Foam Soundproof Foam Flooring Underlay
Material physically cross-linked polyethylene foam
Density 33kg/m3
Roll size 16.9mX1.1m, size can be customized
Surface Area 200sq.ft/ROLL
Thickness 2mm, customized
Vapor Barrier(Coating Flim) silver film.
Impact sound reduction 18dB
Delivery Time 10~15 days
Usage Laminate, Wood, Engineered, LVT, PVC, WPC, SPC
STC(Sound Transmission Class) ASTM E90.62dB
IIC(Impact Insulation Class) ASTM E492.60dB
Certificate RoHS.REACH.ISO9001.ISO14001
Advantages · Excellent water vapor barrier
· Very good impact sound insulation
· Excellent Tear, Tensile and Compression Strength
· Absorbs unevenness in base floor
· High Thermal Stability
· Inert, does not deteriorate or mildew
· Lightweight, easy to install
· Low VOC, Eco-friendly





Description

2 mm thick green IXPE foam floor substrate, provides you with the best moisture and sound reduction properties, so that your floor will not squeak!The 40 micron film will protect your floor from moisture rising from your bottom layer.





Features:

  • Designed for maximum sound reduction

    Exceptionally fine, cross-linked foam for advanced moisture resistance and shock absorption

    Suitable for flooring and heating systems

    Mildew proof, mildew proof

    Compressive resistance technology, excellent performance, long service life

    An adhesive strip for connecting multiple rolls and an overlapping film are included

  • Cushions flooring

  •

Odorless Cross Linked Polyethylene Foam Roll 2mm Laminate Underlay IXPE Foam 1



Q&A:

1. Why would I prefer to use cross-linked foam?

Cross-linking can improve physical properties of the foam, including water-proof, tensile strength, elongation,heat stability and so on.



2. What is difference between XPE and IXPE Foam?

XPE is chemical cross-linked, IXPE is physical type, which’s surface is more smooth and cell size is smaller than XPE. Also thickness evenness is better than XPE.



3. Why would I prefer to use a foam made with polypropylene (PP) instead of polyethylene (PE)?

PP offers greater heat stability and strength at elevated temperatures than does PE. PP is preferred for today's forming and injection processes, which are used to mold automotive interior panels, including door panels and instrument panels.



4. What types of floor covering are compatible with your underlayment?

We offer acoustic underlayment for laminate, engineered, wood. LVT, SPC, WPC, Pls contact us for more details.



5. Do you have any special functions foam?

Yes, we can produce anti-bacterial type, anti-slip type, flame retardant type, anti-static type, conductive and others.



6. What thickness, width, and colors do you offer?

Our thickness range is from about 0.02 mm to 8 mm in single layer and more than 65mm after lamination.

The max. width we produce is 1700mm depends on different spec. Standard black, white,, gray, orange, green,and custom colors are available.
