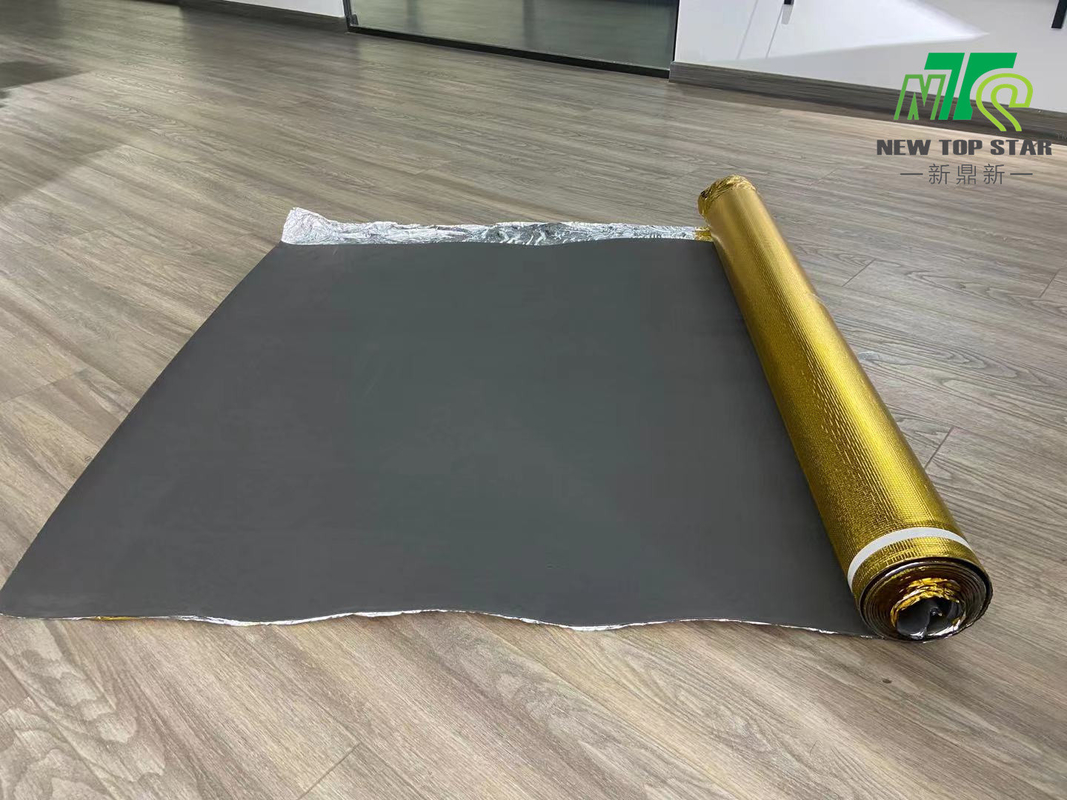

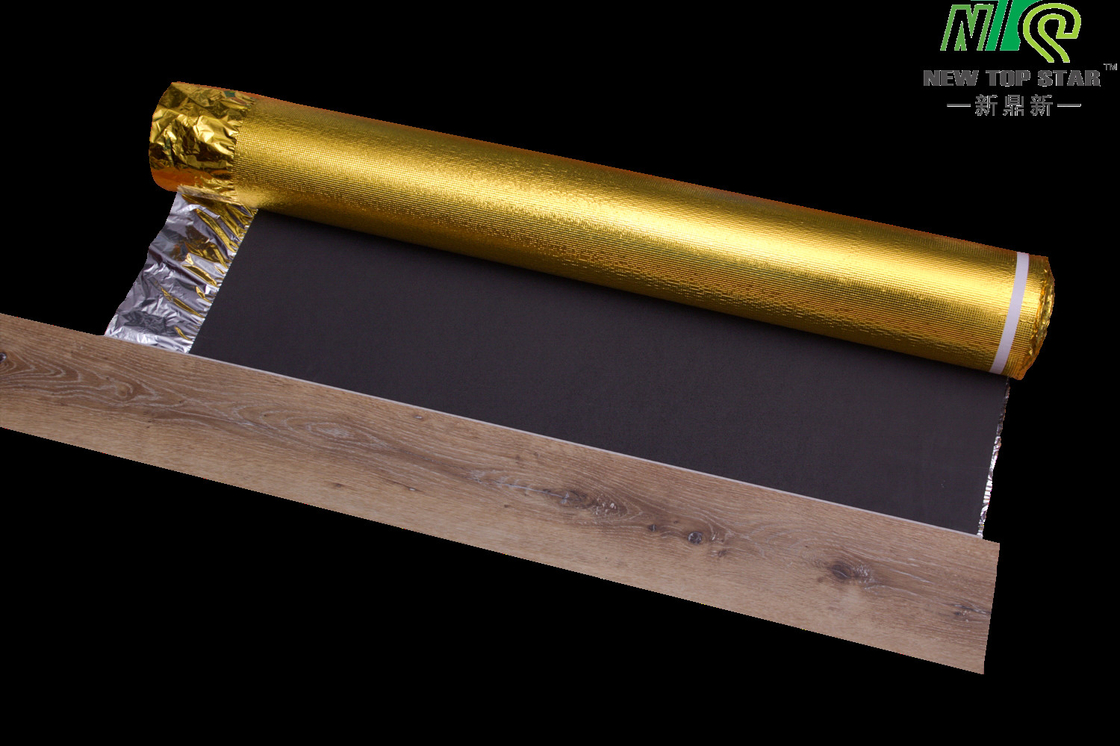

EVA Acoustic Laminate Flooring Underlayment 110kg/M3 Golden Foil 3mm ISO

EVA Acoustic Laminate Flooring Underlayment 110kg/M3 Golden Foil 3mm ISO

  • High Light

    Laminate Flooring Underlayment ISO

    ,

    Laminate Flooring Underlayment 110kg/M3

    ,

    EVA Acoustic Flooring Underlay

  • Name
    3mm Flooring Underlayment
  • Material
    EVA Foam With Golden Aluminium Film
  • Package
    PE Bag/Shrink-wrapped
  • Adhesive Tape
    Yes
  • Thickness
    3mm
  • Color
    Golden And Black
  • Place of Origin
    ChangZhou, JiiangSu province
  • Brand Name
    NEW TOP STAR
  • Model Number
    3mm EVA Foam With Golden Aluminium Film
  • Minimum Order Quantity
    1000m²
  • Packaging Details
    shink wrap each rolls packed with plastic bag
  • Delivery Time
    5-8work days
  • Payment Terms
    T/T

EVA Acoustic Laminate Flooring Underlayment 110kg/M3 Golden Foil 3mm ISO

Golden Foil EVA Acoustic Laminate Floor Underlay 3mm 110kg/M3 ISO Approved


3mm Golden Foil EVA acoustic underlay Premium Flooring Underlayment



Gold Foil EVA Acoustic substrate Premium floor substrate is a step above conventional substrate.

Use a gold leaf on the bottom of this lining - the sound is significantly reduced.

Gold leaf also provides a significant increase in reduced moisture retention.This additional feature eliminates other required layers, thus providing an easier and faster installation.

EVA Acoustic Laminate Flooring Underlayment 110kg/M3 Golden Foil 3mm ISO 0



Product EVA Foam covered with golden aluminium
Color Golden and Black
Roll Size 1mX20m
Construction EVA Foam & golden aluminium film
Thickness 3mm
Density 110kg/m3
Weight per Roll 13.5lbs
Subfloor Compatibility All Types Floor
Surface Area 20SQ.M/ROLL
STC (Sound Transmission Class) ASTM E90.71dB
IIC (Impact Insulation Class) ASTM E90.73dB
Thermal Conductivity(R Value) 0.039W/(m·K)
Qty. In 20 GP 9800SQ.M. (490Rolls)
Qty. In 40 HQ 15800SQ.M.(790Rolls)
Installation Method Floating
Recommended Usage Residential & Light Commercial




Golden Foil EVA acoustic underlay– Wood Flooring Underlay

Golden Foil EVA acoustic underlay is a best selling, dense closed cell polyethylene foam underlay with a gold vapour barrier film on one side and overlap.Golden Foil EVA acoustic underlay is suitable for use with laminate, engineered, and solid wood boards in domestic installations.

Suitable For Use with: Laminate, engineered, and solid wood; floors in domestic and contract installations
– Thickness: 3mm
– Thermal Conductivity(R Value): 0.039W/(m·K)
– DB Rating (Sound Reduction rating): 20dB
– Roll size: 1mtr x 20 mtr = 20 square metres

Features:
– Gold vapour barrier film with overlap – protects against moisture ingress from the subfloor
– High density
– Thermal insulation
– High resistance to puncture
– Impact and airborne sound insulation
– Shock insulation
– Takes out unevenness in the subfloor
– Long term support and protection
– Easy to lift and manoeuvre
– Quick and easy to cut and install
– Eco-friendly

EVA Acoustic Laminate Flooring Underlayment 110kg/M3 Golden Foil 3mm ISO 1

Description - A 3mm thick high-density rubber foam liner with foil barrier is an easy to install foam liner with good shock absorption and water resistance.Each roll of this foam liner features a PE vapor barrier and self-adhesive strip, making installation a breeze.This substrate is suitable for all types of flooring, but is very popular under floating floors such as laminate and engineered flooring.The EVA substrate comes with a 25-year warranty and can be used for radiative cooling.
Benefits
  • Manufactured using high density foam for efficient operation.

    Pre-taped, easy installation to reduce floor noise and sound moisture protection temperature barrier

    Suitable for all types of floor, including cement floor.Suitable for all flooring, including concrete slabs, bamboo, floating and wood floors, and even laminated engineered hardwood!
