High Density Slotted Underlay Soundproof EVA Foam Sheet With Long Hole

High Density Slotted Underlay Soundproof EVA Foam Sheet With Long Hole

  • High Light

    High Density Slotted Underlay

    ,

    Slotted Underlay EVA

    ,

    Soundproof EVA Foam Sheet

  • Material
    EVA Foam With Slotted Hole
  • Surface Area
    20SQ.M./Roll
  • Thickness
    2mm
  • Application
    All Type Flooring
  • Color
    Black
  • Density
    110KGS/m³
  • Product
    Flooring Underlay
  • Place of Origin
    china
  • Brand Name
    new top star
  • Certification
    Rohs.REACH.ISO
  • Model Number
    EVA320-LH
  • Minimum Order Quantity
    1000SQ.M.
  • Price
    0.7USD/sq.m.
  • Packaging Details
    shrink-wrapped
  • Delivery Time
    5-8 work days
  • Supply Ability
    2000000sq.m. per month

High Density Slotted Underlay Soundproof EVA Foam Sheet With Long Hole

2mm High Density Soundproof EVA Foam Sheet with Long Hole Heating Underlay Flooring Underlayment



Description

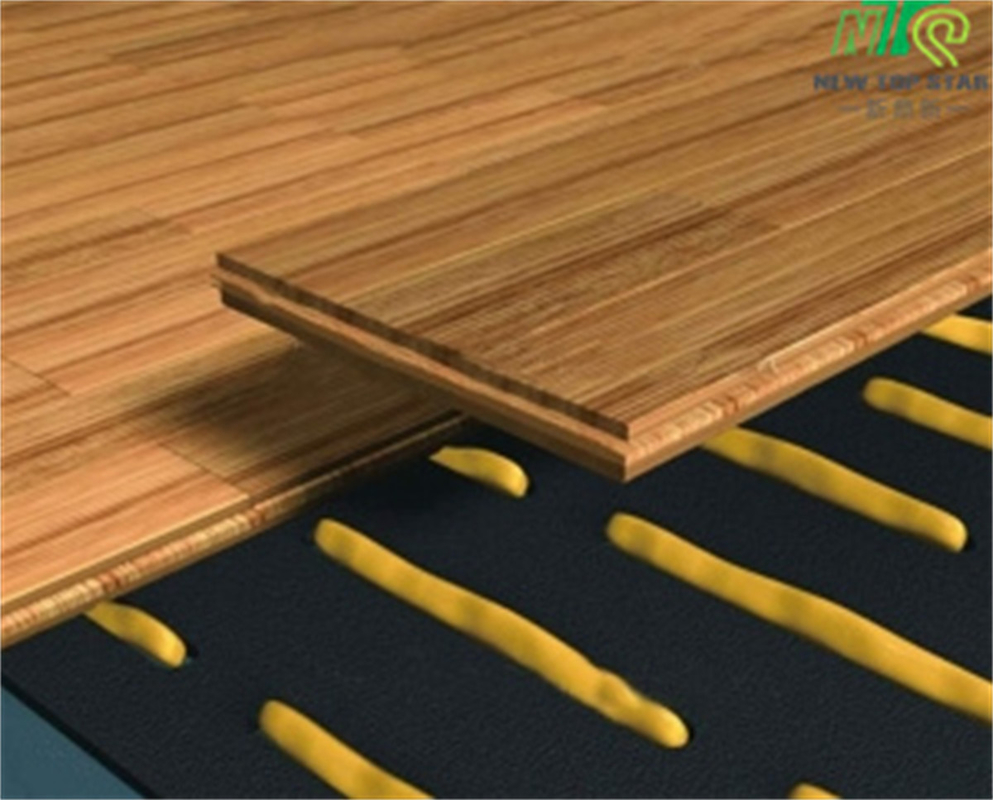

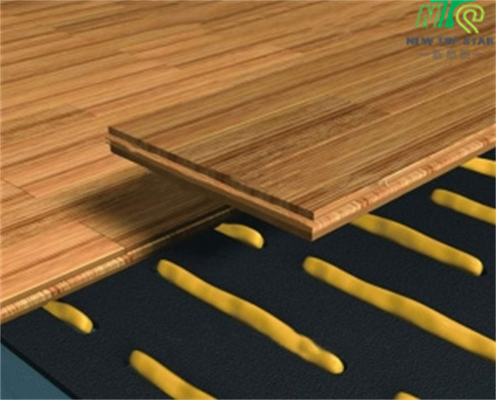

Slotted EVA underlay allows the use of an adhesive, directly through the slots, to bond the wood floor to the subfloor. This product gives all the benifits (heat retention / insulation / noise reduction) of using an underlay with the added benefit of a fully stuck floor. The slots are filled with adhesive and the flooring laid on top - bonding the floor to the sub-floor, while retaining the layer of underlay in between.

High Density Slotted Underlay Soundproof EVA Foam Sheet With Long Hole 0







Advantages:

  • Unique slotted design for underfloor heating
  • Water-resistant and durable closed cell EVA foam
  • Attached moisture prevention barrier film
  • Avaliable in vourious sizes and colors
  • Fast and easy to install
  • Perfect match for underfloor heating system
  • Moisture protection and impact noise reduction
  • Shock absorbing and heat insulation
  • Mold and mildew resistant protection
  •

High Density Slotted Underlay Soundproof EVA Foam Sheet With Long Hole 1





Specification

EVA Foam with slotted Hole Flooring Underlayment
Type Standard acoustic, Anti-slip, Anti-bacteria, Underlay for heated flooring
Density 110kg/m3
Roll size 20mX1m, size can be customized
Surface Area 20SQ.M/ROLL
Thickness 2mm, customized
Vapor Barrier(Coating Flim) no film
Impact sound reduction 18dB
Delivery Time 10~15 days
Usage Laminate, Wood, Engineered, LVT, PVC, WPC, SPC
STC(Sound Transmission Class) ASTM E90. 62dB
IIC(Impact Insulation Class) ASTM E492. 60dB
Certificate RoHS.REACH.ISO9001.ISO14001
Advantages · Excellent water vapor barrier
· Very good impact sound insulation
· Excellent Tear, Tensile and Compression Strength
· Absorbs unevenness in base floor
· High Thermal Stability
· Inert, does not deteriorate or mildew
· Lightweight, easy to install
· Low VOC, Eco-friendly



Qty. In 20 GP 6800SQ.M. (350Rolls)
Qty. In 40 HQ 26000SQ.M.(1300Rolls)



High Density Slotted Underlay Soundproof EVA Foam Sheet With Long Hole 2






Features:

  • Use Over Underfloor Heating
  • Mould & Mildew-Resistant
  • Prevents Rocking & Sound Bridges
  • Joint Protection Less Than 0.5mm Deflection Under Load
  • Significantly Reduces Installation Time
  • Good Transmitted Sound Reduction
  • Fire-Retardant Foam
