1.5mm EVA Vapor Barrier Underlayment For Vinyl Plank Flooring

1.5mm EVA Vapor Barrier Underlayment For Vinyl Plank Flooring

  • High Light

    1.5mm Vapor Barrier Underlayment

    ,

    EVA Vapor Barrier Underlayment

    ,

    Underlayment For Vinyl Plank Flooring

  • Type
    High Density Green EVA With Embossed Film
  • Color
    Green And Black
  • Thickness
    1.5MM
  • Coating
    Embossed Pattern
  • Package
    Shrink-wrapped With PE Bag
  • Application
    Floating Floor
  • Place of Origin
    china
  • Brand Name
    new top star
  • Certification
    Rohs.REACH.ISO
  • Model Number
    EVA15(GR)-EP
  • Minimum Order Quantity
    1000SQ.M.
  • Price
    negotiate
  • Packaging Details
    shrink-wrapped/plastic bag
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    2000000sq.m. per month

1.5mm EVA Vapor Barrier Underlayment For Vinyl Plank Flooring

Vinyl Plank Acoustic Flooring Underlay 1.5mm EVA Vapor Barrier Flooring Underlayment

Desicrpition

1.5mm denser green EVA corved with black PE film.Superior underlayment moisture protection for laminate, wood floating, and wood polymer composite (WPC) floors. Vinyl floorings.Tough water-resistant technology, advanced acoustical sound reduction. This is designed for floating floor installations - LVT, SPC, laminate, hardwood and bamboo. A Premium closed cell structure underlayment with attached moisture barrier. It reduces through the floor sound transmission while providing a sound similar to traditional wood floors. This underlayment is with a 1.5 mm thickness foam layer that provides optimal cushioning and sound absorption, as well as a closed cell foam design that offers excellent moisture vapor resistance. It coordinates the comfort with your floorings.

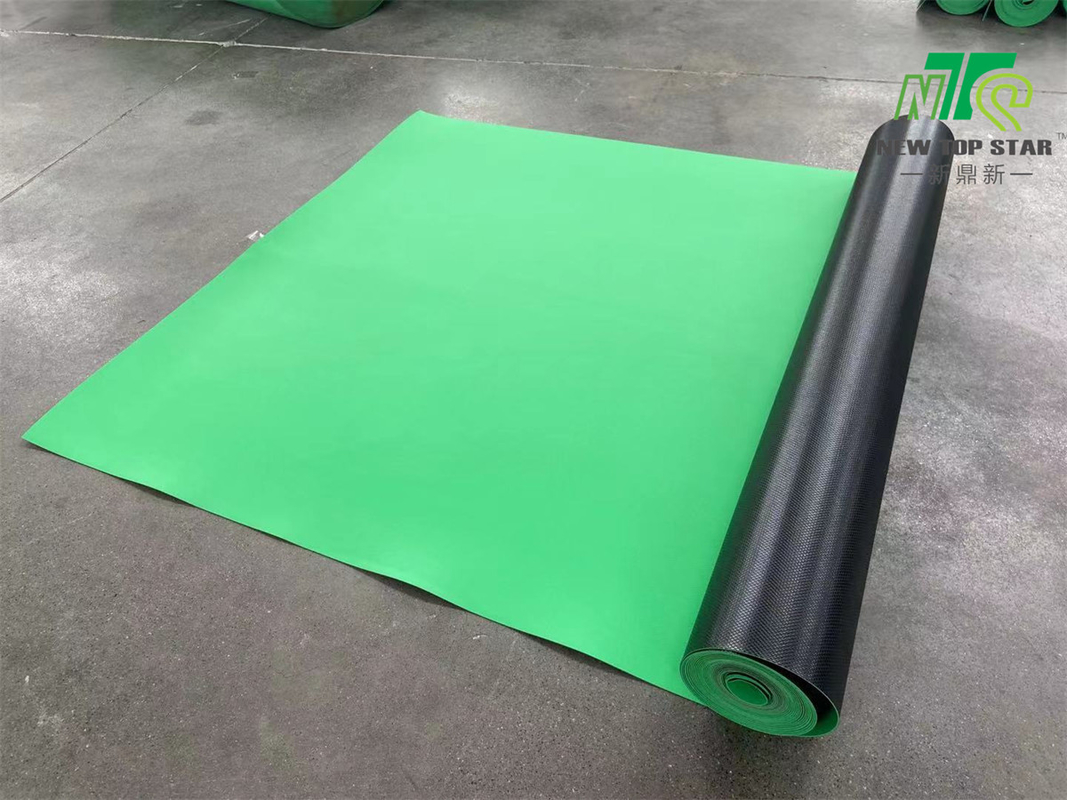

1.5mm EVA Vapor Barrier Underlayment For Vinyl Plank Flooring 0



PRODUCT SPECIFICATION



Product Green special EVA Foam covered with black PE film
Color Green and Black
Type Soundproof EVA+ Vapor Barrier
Construction 1.5mm green high density EVA Foam & 0.08mm PE film
Thickness 1.5mm
Density 140kg/m3
Weight per Roll 4.4lbs
Subfloor Compatibility All Types Floor
Surface Area 200SQ.FT/ROLL
STC (Sound Transmission Class) ASTM E90.  61dB
IIC (Impact Insulation Class) ASTM E90.  63dB
Thermal Conductivity(R Value) 0.039W/(m·K)
Qty. In 20 GP 9600SQ.M. (500Rolls)
Qty. In 40 HQ 21000SQ.M.(1100Rolls)
Installation Method Floating
Recommended Usage Residential & Light Commercial

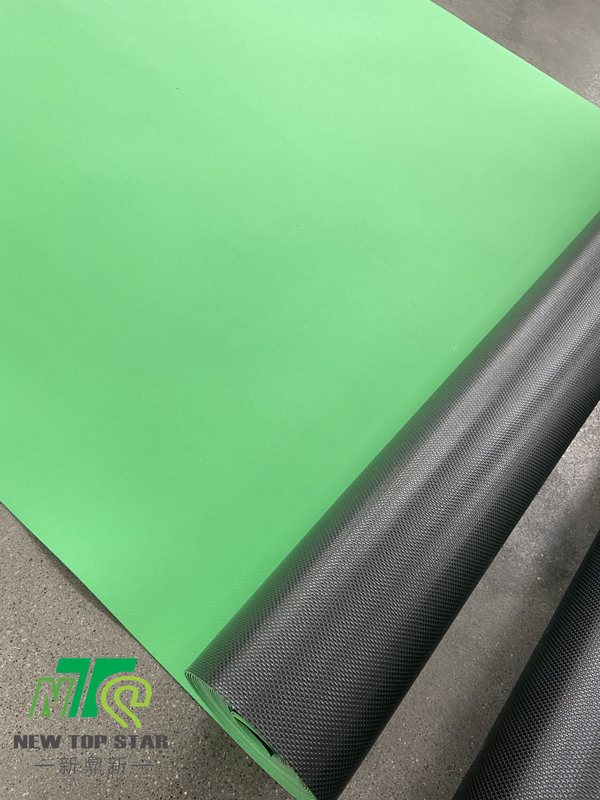

1.5mm EVA Vapor Barrier Underlayment For Vinyl Plank Flooring 1





Features

  1. For use under LVT, SPC, WPC.laminate, bamboo and engineered wood floated floors
  2. High density, closed cell structure offers moisture, mold and mildew resistance
  3. 1.5mm Thick EVA + 0.08mm PE film.Sound insulating construction.
  4. Cover area 200 sq. ft. per roll
  5. Anti-slip.Tape and overlap ensure quick installation
  6. Features cushioning and reduction in sound transference
  7. IIC (Impact Insulation Class) Rating is 73dB
  8. STC (Sound Transmission Class) is 71dB
  9. Sound Transmission Reduction 19 db
  10. Non-allergenic, odorless, and non-toxic
  11. 1.5mm EVA Vapor Barrier Underlayment For Vinyl Plank Flooring 2
