EVA Acoustic Laminate Flooring Underlayment Golden Foil 3mm 110kg/M3 ISO

EVA Acoustic Laminate Flooring Underlayment Golden Foil 3mm 110kg/M3 ISO

  • High Light

    Laminate Flooring Underlayment Golden Foil

    ,

    Laminate Flooring Underlayment 3mm

    ,

    Acoustic Laminate Floor Underlay

  • Name
    3mm Flooring Underlayment
  • Material
    EVA Foam With Golden Aluminium Film
  • Package
    PE Bag/Shrink-wrapped
  • Construction
    EVA Foam & Foil Barrier Film
  • Thickness
    3mm
  • Color
    Golden And Black
  • Place of Origin
    china
  • Brand Name
    new top star
  • Certification
    Rohs.REACH.ISO
  • Model Number
    EVA30-G
  • Minimum Order Quantity
    1000SQ.M.
  • Price
    0.67USD/sq.m.
  • Packaging Details
    shrink-wrapped
  • Delivery Time
    5-8 work days
  • Supply Ability
    2000000sq.m. per month

EVA Acoustic Laminate Flooring Underlayment Golden Foil 3mm 110kg/M3 ISO

Golden Foil EVA Acoustic Laminate Floor Underlay 3mm 110kg/M3 ISO Approved
3mm Golden Foil EVA acoustic underlay Premium Flooring Underlayment





PRODUCT DESCRIPTION



Golden Foil EVA acoustic underlay Premium Flooring Underlayment is a step above traditional underlay flooring.

Using a golden foil on the underside of this underlay – sound is reduced significantly.

The golden foil also provides a significant increase in the reduction of moisture retention. This additional feature eliminates other required layers, to provide an easier and faster installation.

Description - 3mm Thick High-Density Rubber Foam Underlayment With Foil Barrier is an easy to install foam underlay that provides excellent shock absorption and is water-resistant. Each roll of this foam underlayment features a PE vapor barrier and self-adhering strips, making installation a breeze. This underlay is great under all flooring types but is very popular under floating floors such as laminate and engineered wood flooring. EVA underlayment is backed by a 25-year warranty and is approved over radiant heat.

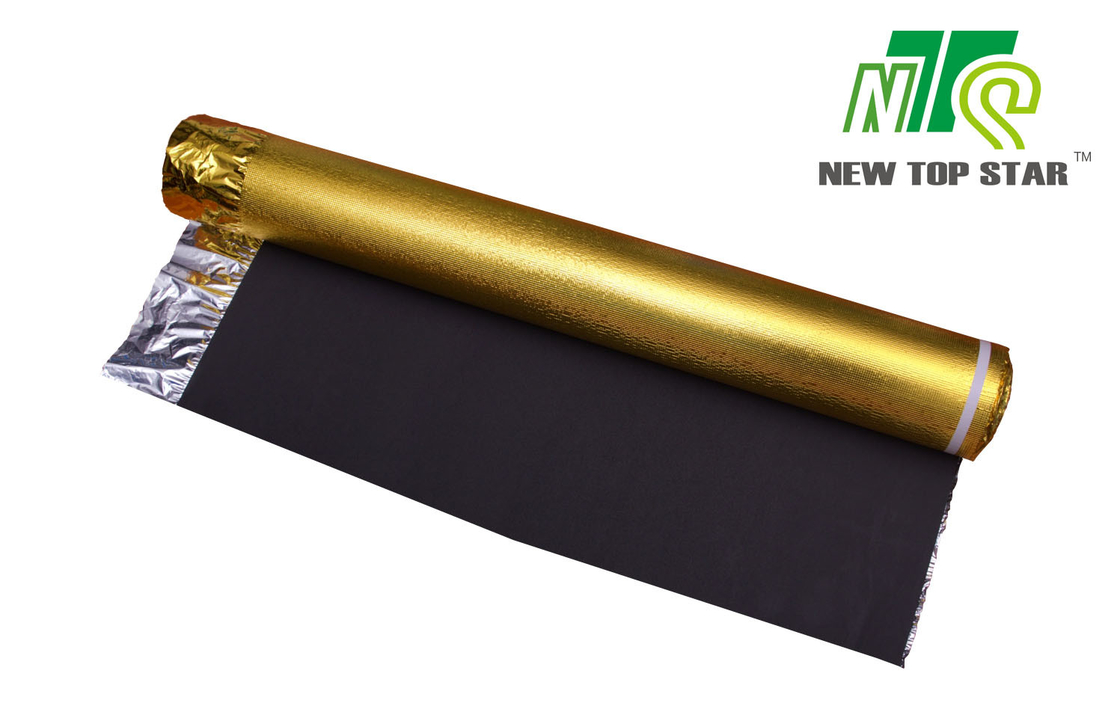

EVA Acoustic Laminate Flooring Underlayment Golden Foil 3mm 110kg/M3 ISO 0

Specification

Product EVA Foam covered with golden aluminium
Color Golden and Black
Roll Size 1mX20m
Construction EVA Foam & golden aluminium film
Thickness 3mm
Density 110kg/m3
Weight per Roll 13.5lbs
Subfloor Compatibility All Types Floor
Surface Area 20SQ.M/ROLL
STC (Sound Transmission Class) ASTM E90.71dB
IIC (Impact Insulation Class) ASTM E90.73dB
Thermal Conductivity(R Value) 0.039W/(m·K)
Qty. In 20 GP 9800SQ.M. (490Rolls)
Qty. In 40 HQ 15800SQ.M.(790Rolls)
Installation Method Floating
Recommended Usage Residential & Light Commercial

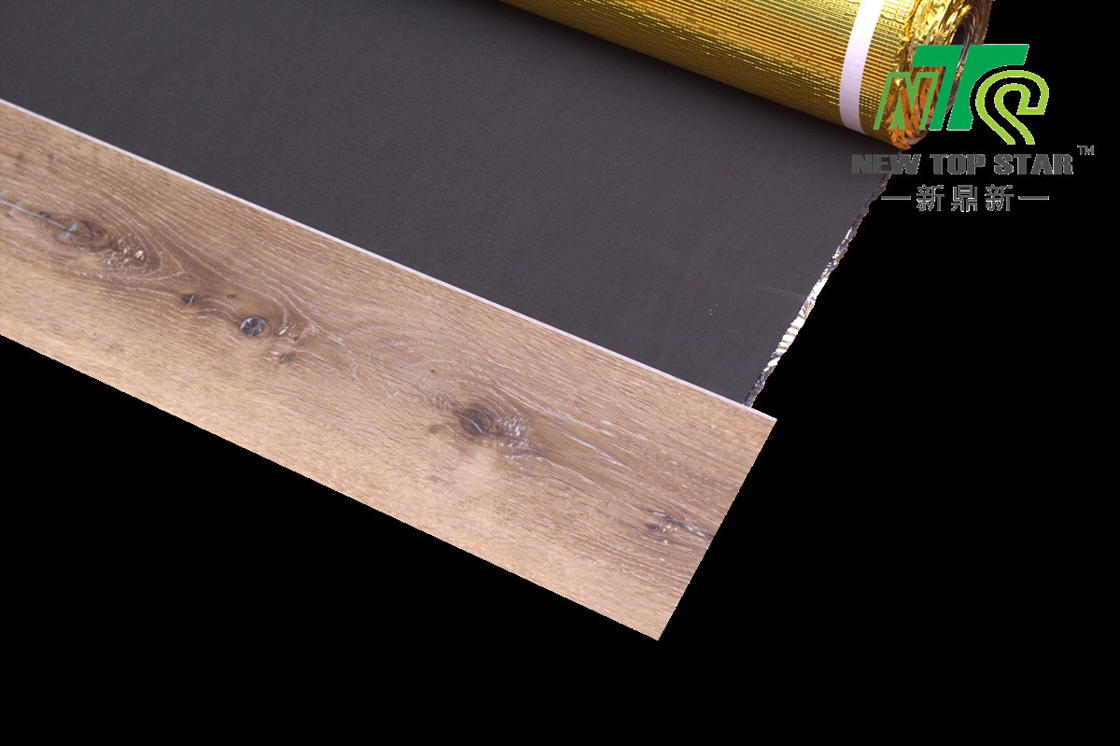

EVA Acoustic Laminate Flooring Underlayment Golden Foil 3mm 110kg/M3 ISO 1



Features



Golden Foil EVA acoustic underlay– Wood Flooring Underlay

Golden Foil EVA acoustic underlay is a best selling, dense closed cell polyethylene foam underlay with a gold vapour barrier film on one side and overlap.Golden Foil EVA acoustic underlay is suitable for use with laminate, engineered, and solid wood boards in domestic installations.

Suitable For Use with: Laminate, engineered, and solid wood; floors in domestic and contract installations
– Thickness: 3mm
Thermal Conductivity(R Value): 0.039W/(m·K)
– DB Rating (Sound Reduction rating): 20dB
– Roll size: 1mtr x 20 mtr = 20 square metres

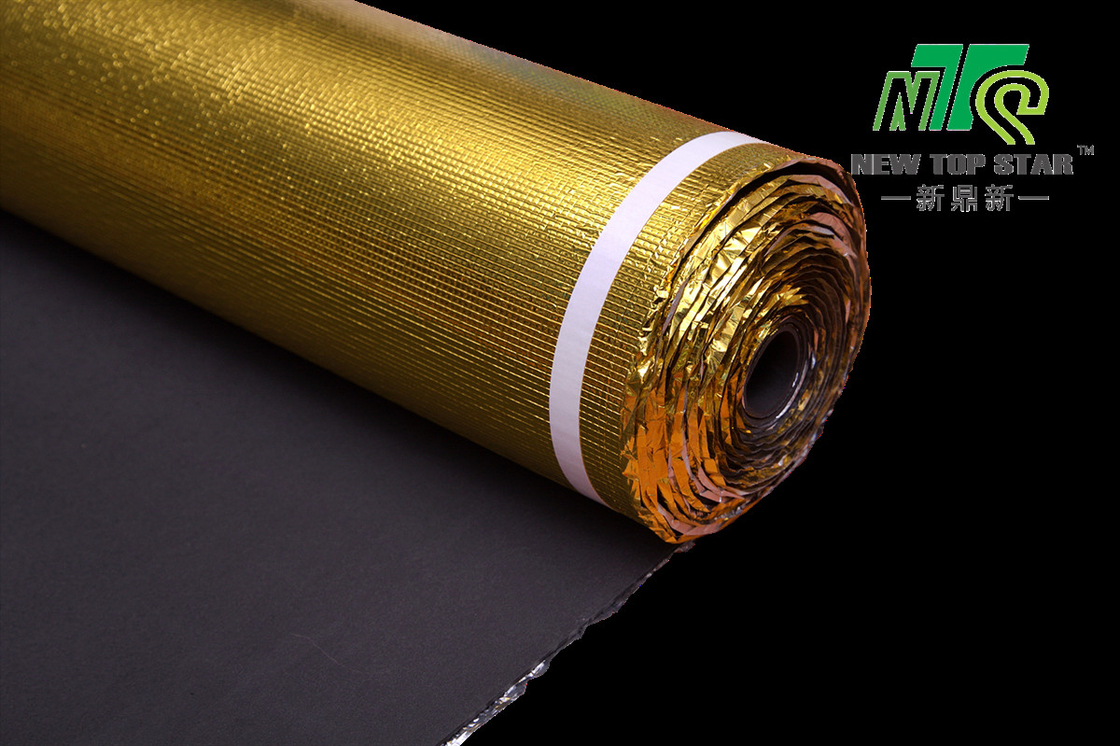

EVA Acoustic Laminate Flooring Underlayment Golden Foil 3mm 110kg/M3 ISO 2

Features:
– Gold vapour barrier film with overlap – protects against moisture ingress from the subfloor
– High density
– Thermal insulation
– High resistance to puncture
– Impact and airborne sound insulation
– Shock insulation
– Takes out unevenness in the subfloor
– Long term support and protection
– Easy to lift and manoeuvre
– Quick and easy to cut and install
– Eco-friendly

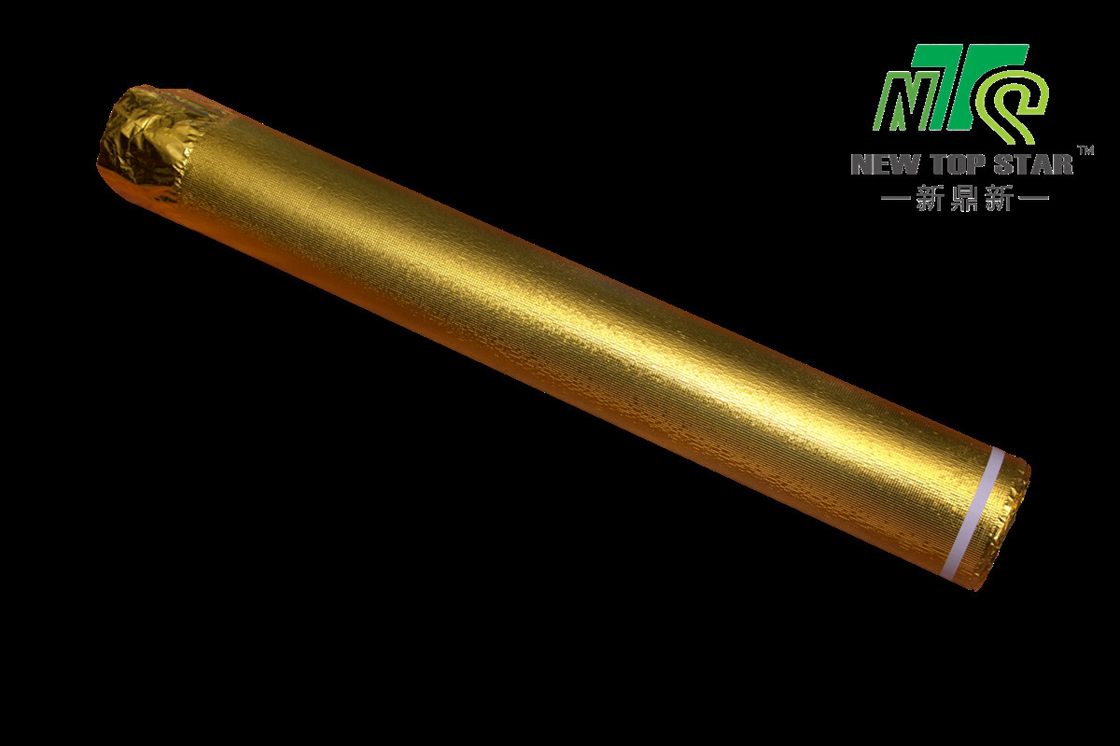

EVA Acoustic Laminate Flooring Underlayment Golden Foil 3mm 110kg/M3 ISO 3



Benefits
  • Manufactured using a high-density foam material to function extremely efficiently.
  • Pre-attached tape for easy installation Reduces floor noise and sound Moisture barrier protection temperature barrier
  • Suitable for all types of subfloor including cement subfloor. Ideal for all flooring ranging from concrete slab, bamboo, floating and wood floors, or even laminates engineered hardwood!
